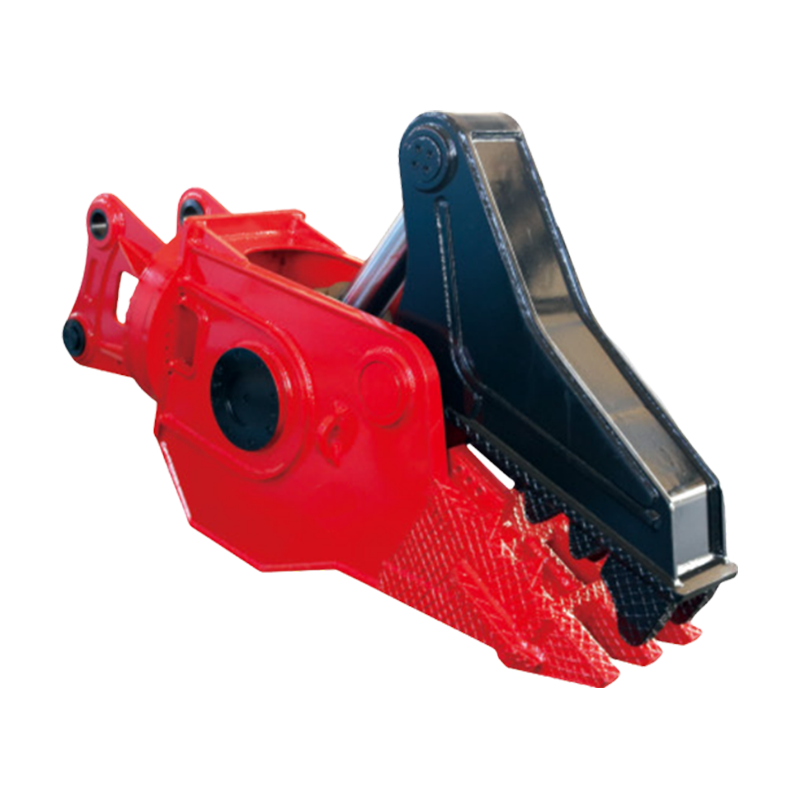

Single cylinder slewing hydraulic shear

Contact Us
Describe



  Scrap Steel   Concrete
Model Unit CN-WE02 Model Unit CN-W04E2 CN-W06E2 CN-W08E2 CN-W10E2
Dead-weight kg 477 Dead-weight kg 554 1410 2300 2890
Max Opening mm 515 Max Opening mm 451 724 970 1050
Length mm 1395 Length mm 1404 2324 2392 2736
Width mm 380 Width mm 488 655 720 900
Rotation Mode   360°Hydraulic Blade Length mm 98 150 180 200
Pressure Bar 210 Main Teeth Crushing Force T 56 132 146 203
Root Crushing Force T 95 Max Crushing Force T 101 132 154 225
Application

1. Unique layout design of jaw tooth, with double-layer wear-resisting protection.

2. It can be used for the first and second concrete crushing.

3. The structure is optimized through load design to balance the opening size and crushing force.

4. The adoption of special slewing support provides stable performance.
