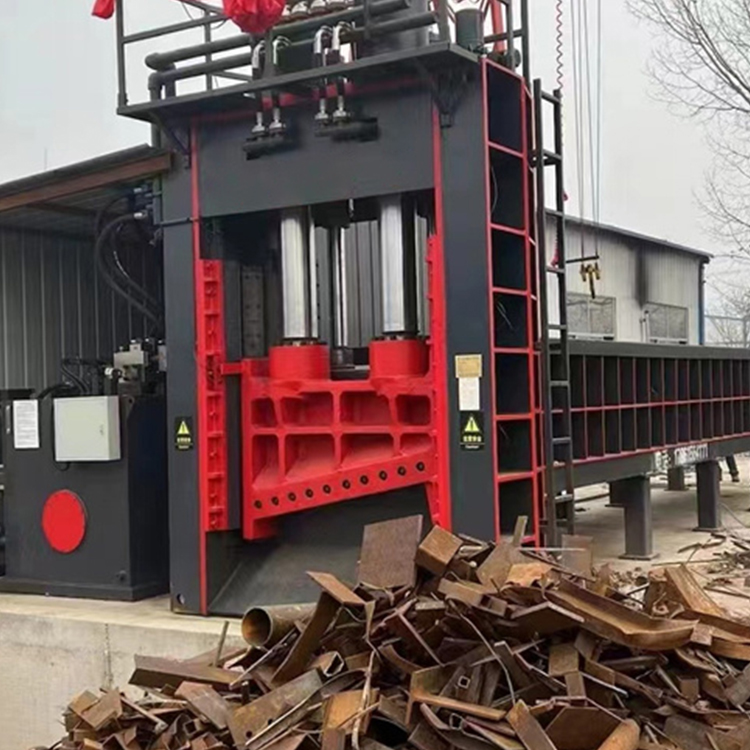

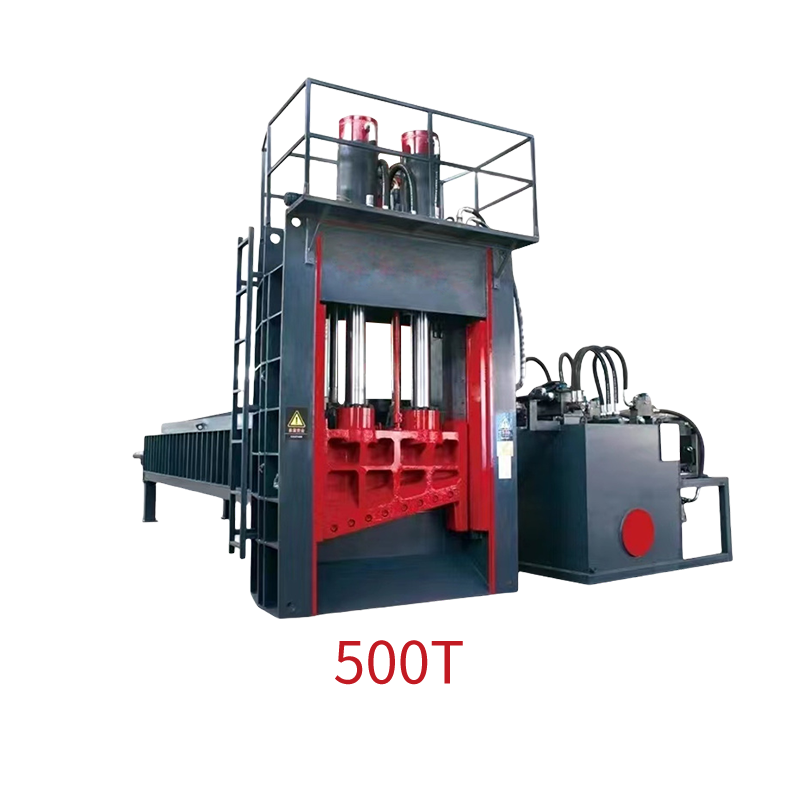

500 tons of gantry shears are equipped with two main shear cylinders with an inner diameter of 360, which can reach the standard 500 tons of shear force. The whole cast steel cutter holder is not easy to deform, and the knife edge is 1.6 meters. The blade adopts Maanshan h13 blade, and the blade adds h13 material cushion to effectively protect the main body of the machine. It also has an automatic oiler while reducing friction.

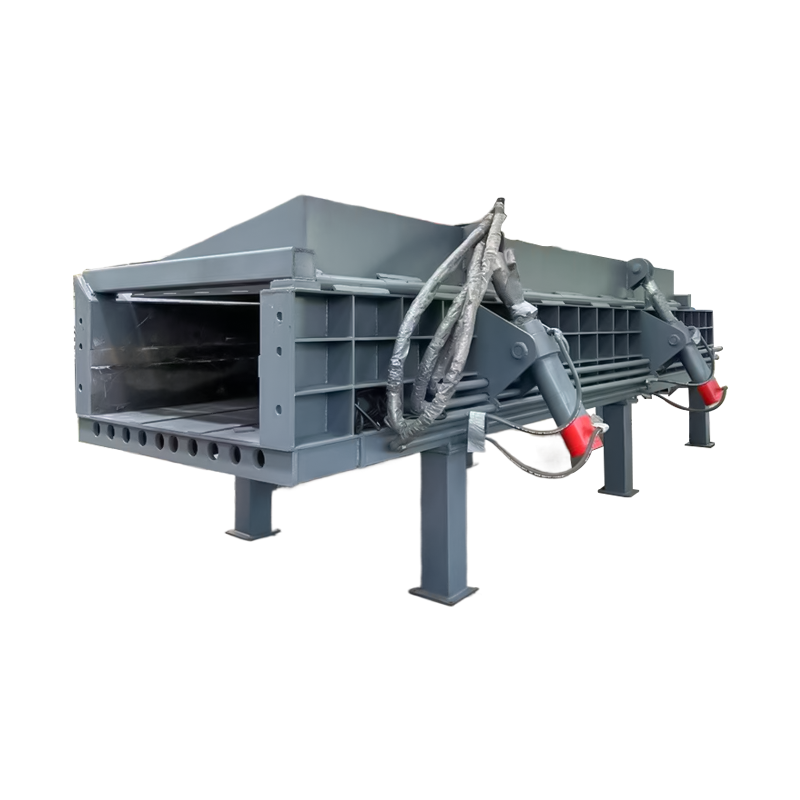

6 meters of material box one-sided weighted door cover, covered with Jiangyin Xingcheng special steel nm500 wear-resistant plate, more wear-resistant, three-sided four-way slide rail, to prevent the push head stuck material, warping head.

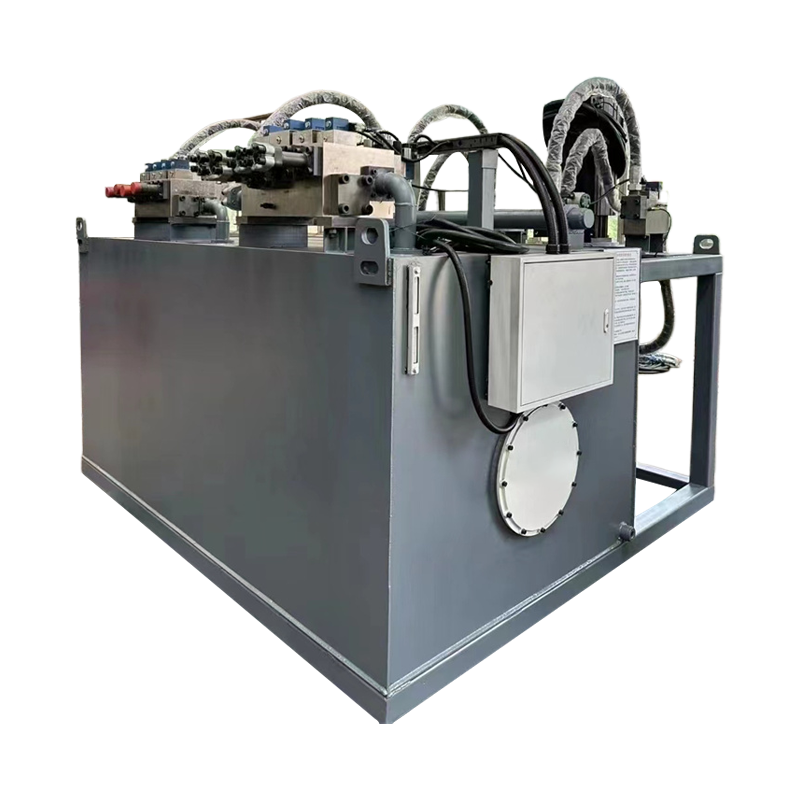

Hydraulic station is equipped with a 78.3kw servo motor to drive a4v250 series a4v250 high speed oil pump, high speed, large flow, automatic start and stop, energy saving 40-60%.

The inside of the tank can be sandblasted to remove rust, and 20 barrels of No. 46 anti-wear hydraulic oil can be added.

The pipeline is also pickling phosphating treatment to ensure that the equipment is not stuck in the later use of valve blocking valve, plate cooling with large flow centrifugal oil pump, cooling effect is better.

The control part is controlled by plc automatic + remote control, which can be operated by one person and one excavator, saving labor and improving work efficiency.
